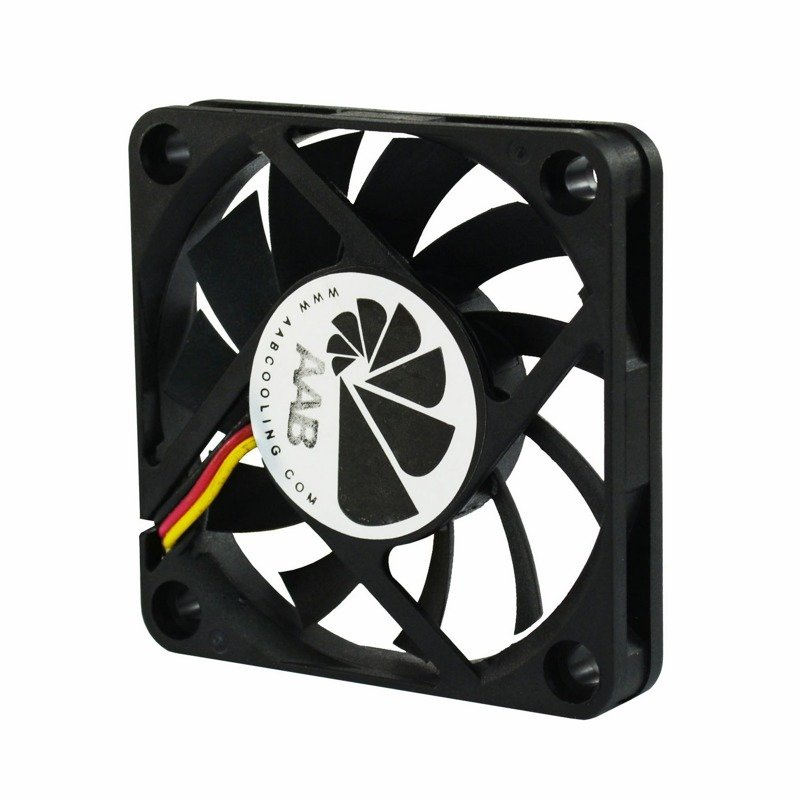

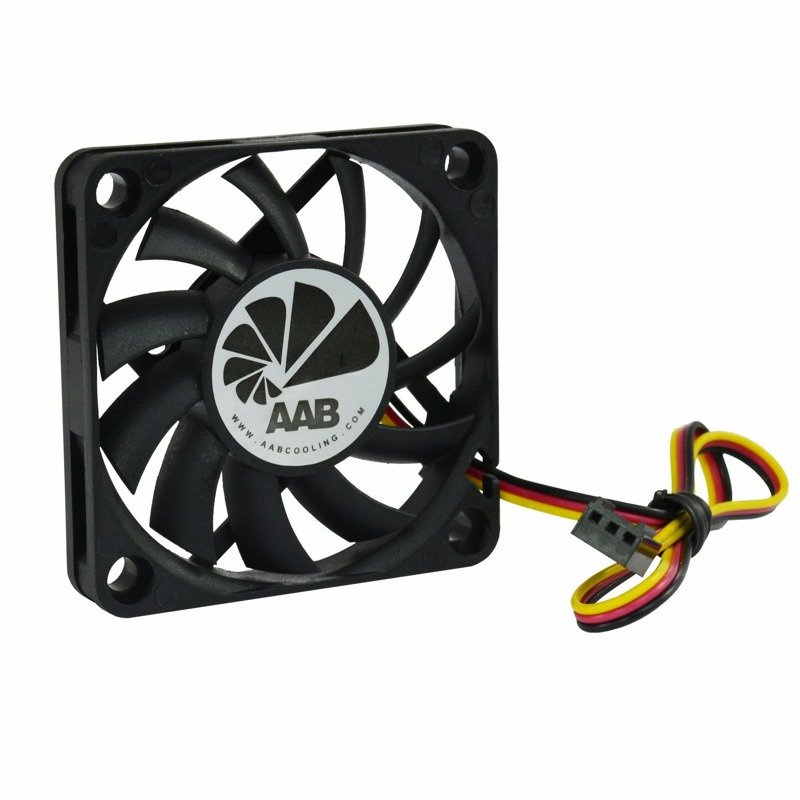

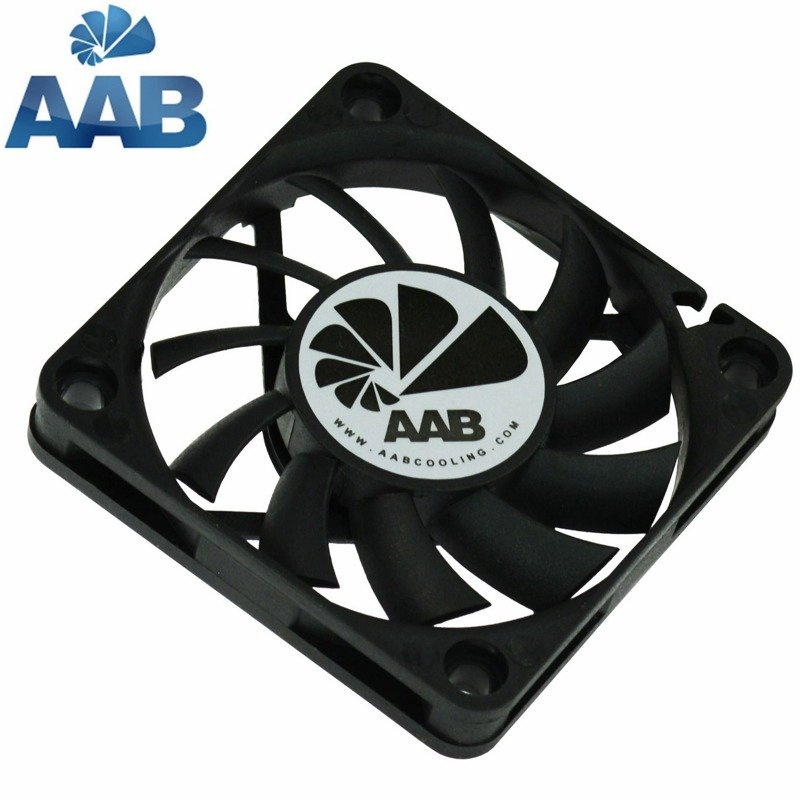

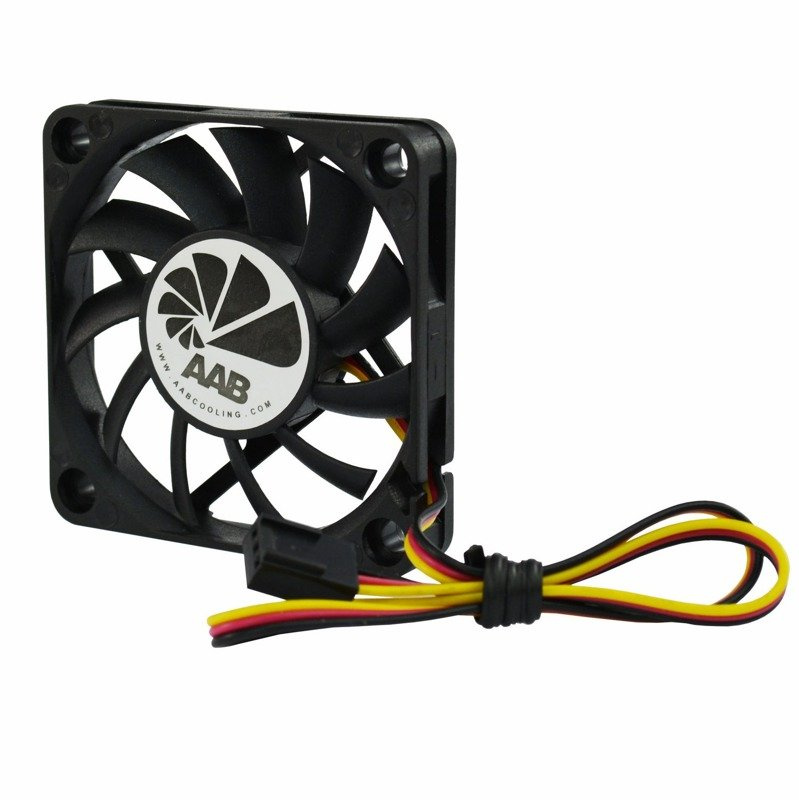

AABCOOLING Fan 6

  • AABCOOLING Fan 6 is an economical fan from AAB. The fan runs at a constant 2000 ± 10% rpm. The noise level generated by the blades and the bearing is 22 dB(A). Product warranty is only 3 months.
  • AABCOOLING Fan 6
  • AABCOOLING Fan 6
  • AABCOOLING Fan 6
  • AABCOOLING Fan 6
  • AABCOOLING Fan 6
Producer: AABCOOLING
Product code: 5901812999962
£1.98
/ piece

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 30 days.
Show details
30 days to withdraw from the contract
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 30 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.
aab_cooling_fan_6_dsc_2747

AABCOOLING Fan 6 is an economical fan from AAB. The fan runs at a constant 2000 ± 10% rpm. The noise level generated by the blades and the bearing is 22 dB(A). Due to the installation of the cheapest and short-life plain bearings in this fan, this product warranty is only 3 months.

- Economy series

- Efficient

- 3 Pin Plug

- Sleeve Bearings

- Warranty 3 months




Typical applications:

Mounting the fan in the cover or power supply: The AABCOOLING Fan 6 is mounted on four screws, fixed to the standard fans in the power supply, allowing quick and easy replacement of the loud fan.

Installation methods in the power supply:

- Plug the fan plug into the 3Pin connector
- It is safer to solder the power cord to the power supply (voltage control from the power supply). Cut off the 3 pin plug and connect the fan directly to the power supply (no return possible).
- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed

Included:
- 1 x AABCOOLING Fan 6

Tech specs
Total dimensions:
60 x 60 x 10 mm
Weight:
27 g
Material:
Plastic
Power Supply:
7,5~12 VDC/ 0,05A~0,08A
Power Connector:
3 Pin
Speed:
2000rpm ±10%
Airflow:
16,8 CFM
Noise:
22 dB(A)
Bearings:
Slides
Thermal resistance:
0,29 C/W
Mounting hole spacing:
50 x 50 mm
Cable length::
30cm
