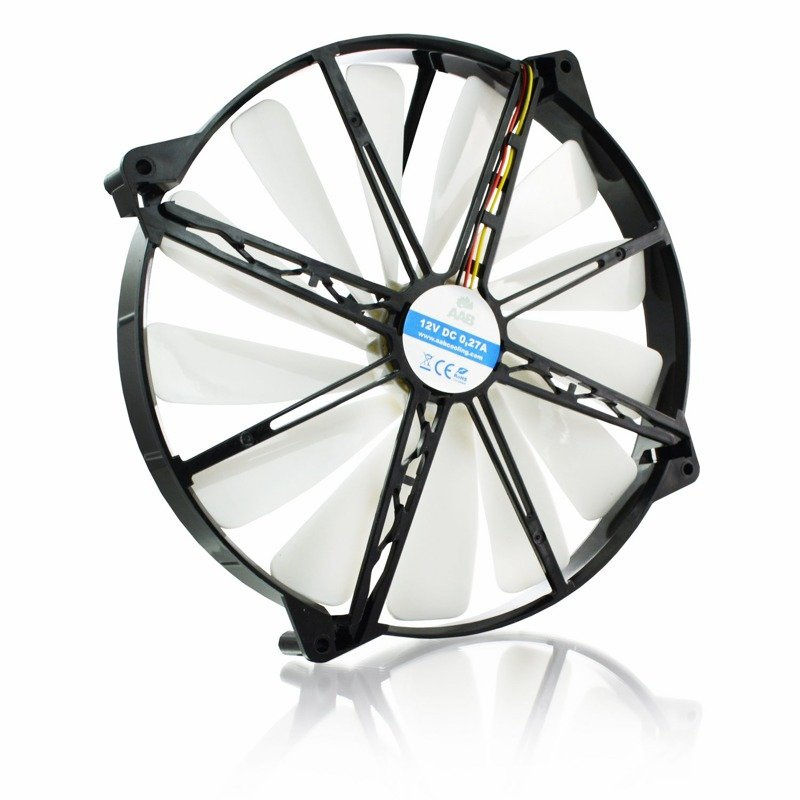

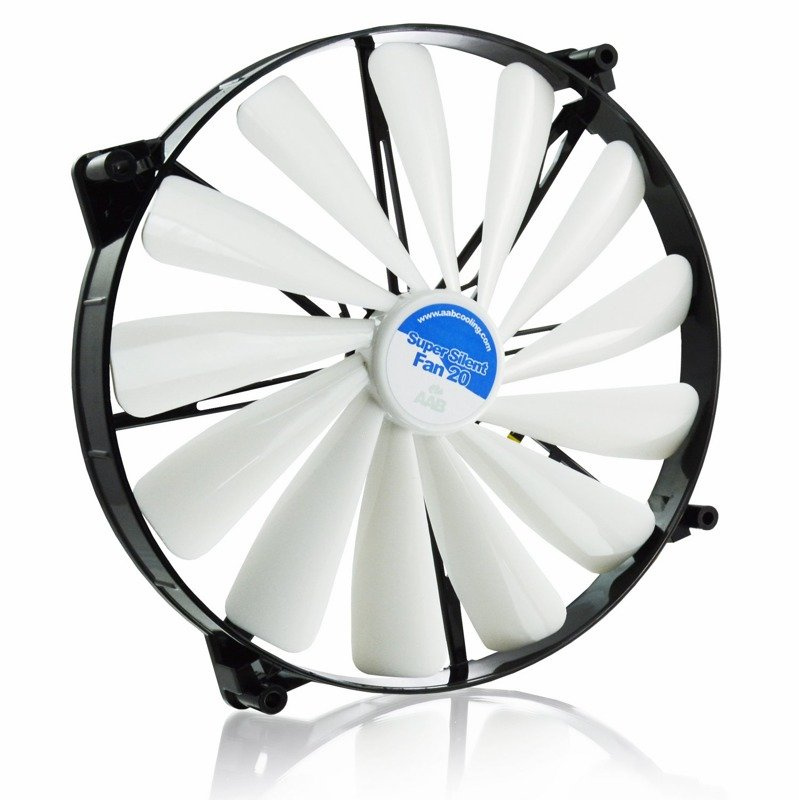

AABCOOLING Super Silent Fan 20

  • The AABCOOLING Super Silent Fan 20 is a high performance 200 x 200 mm fan with up to 13 fan blades. The fan operates at a constant speed of 800 ± 10%. The air flow is as high as 193 m 3 / h and the noise generated by the propeller is approx. 14,9 dB
  • AABCOOLING Super Silent Fan 20
  • AABCOOLING Super Silent Fan 20
  • AABCOOLING Super Silent Fan 20
  • AABCOOLING Super Silent Fan 20
  • AABCOOLING Super Silent Fan 20
  • AABCOOLING Super Silent Fan 20
Producer: AABCOOLING
Product code: 5901812990372
£10.04
/ piece

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 30 days.
Show details
30 days to withdraw from the contract
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 30 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.
aab_cooling_super_silent_fan_20_dsc_4996

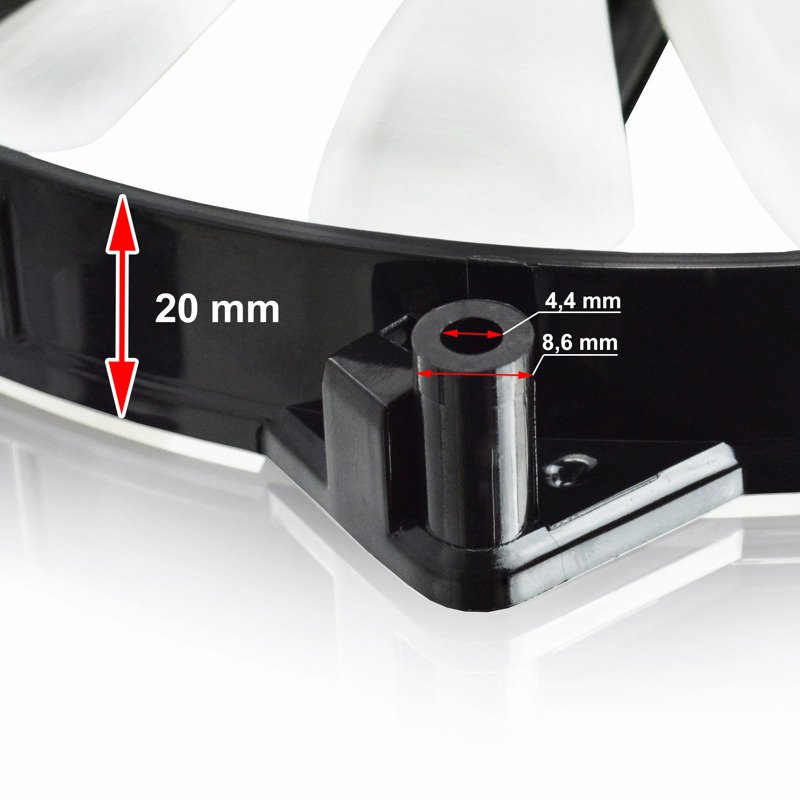

AABCOOLING Super Silent Fan 20 is a high performance 200 x 200 mm fan with up to 13 fan blades designed in a dynamic way for high performance. Solid, not pricey and lightweight 200 x 200 x 20 mm fan with 155 x 155 mm (side) spacing between mounting holes.
The fan operates at a constant speed of 800 ± 10%. The air flow is as high as 193 m 3 / h and the noise generated by the propeller is approx. 14,9 dB, which makes it a very quiet and efficient fan in its class available on the market. The mounting is very simple -, we install the fan with 4 screws in the chosen place.

- Solid construction, 200 x 200 x 20 mm

- State-of-the-art IC

- Cable in elegant black braid

- Modern, quiet FDB bearing

- Excellent work performance 193 m3/h

- Mounting and anti-vibration washers

- Extended lifespan: 100000h




Application:

The AABCOOLING Super Silent Fan 20 is mounted on 4 screws. Because of the custom dimensions, it requires individual adjustment of the PC side panel / casing. Possibility of mounting, for example, in a caravan to improve air circulation or small rooms / equipment requiring extra ventilation - more efficient cooling.

FDB bearings:

- no friction, prolonged lifespan
- leveling the vibrations that are damped by oil
- minimizing noise, which is generated only by fan blades.
- oil leakage protection
- spiral filling with oil for better lubrication, no possibility of oil accumulation in one part of the bearing
- used on hard drives, as much more efficient, quieter, to guarantee more efficient work
- Ordinary plain bearings slip during operation, rubbing against each other, they heat up, which significantly shortens their life span.

Mounting the fan in a casing or power supply:

- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed.

Included:

- 1 x AABCOOLING Super Silent Fan 20
- 4 x mounting screws
- 4 x anti-vibration washers
- Packaging

Tech specs
Total dimensions:
200 x 200 x 20 mm
Weight:
155 g
Material:
Plastic
Power Supply:
4V~12 VDC/ 0,09A~0,27A/ 0,36W~3,2W
Power Connector:
3 Pin
Speed:
800 rpm+/-10%
Airflow:
193 m3/h
Noise:
14,9 dB(A)
Bearings:
FDB(Fluid Dynamic Bearing) - Hydraulic
Thermal resistance:
0,29 C/W
Mounting hole spacing:
153 x 153 mm
Lifespan:
100000 h
