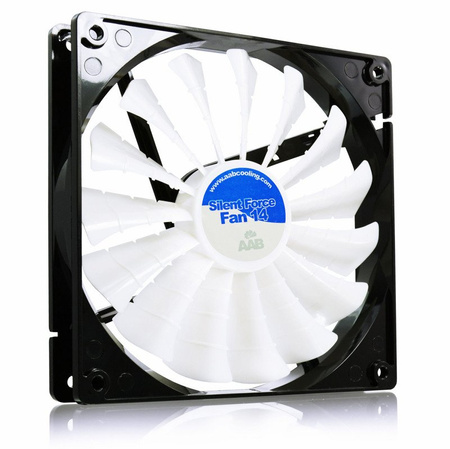

AABCOOLING Silent Force Fan 14

  • AABCOOLING Silent Force Fan 14 is a high-end 14cm fan with 11 fan blades. This allows a significant increase in productivity (up by approx. 50%) and noise reduction.
  • AABCOOLING Silent Force Fan 14
  • AABCOOLING Silent Force Fan 14
  • AABCOOLING Silent Force Fan 14
  • AABCOOLING Silent Force Fan 14
  • AABCOOLING Silent Force Fan 14
  • AABCOOLING Silent Force Fan 14
  • AABCOOLING Silent Force Fan 14
  • AABCOOLING Silent Force Fan 14
  • AABCOOLING Silent Force Fan 14
Producer: AABCOOLING
Product code: 5901812990129
£8.15
/ piece

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 30 days.
Show details
30 days to withdraw from the contract
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 30 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.
DSC_4566o

AAB Cooling Silent Force Fan 14 is a high-end 14cm fan with 15 fan blades. This allows a significant increase in productivity (up by approx. 50%) and noise reduction.

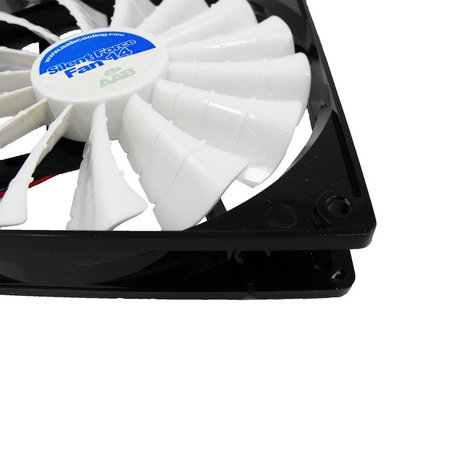

Specially profiled blades alleviate noise, and the fan is characterized by high quality, efficient work and favorable price. The silicone screw washers that reduce vibration are also included in the set.
The fan operates at a constant speed of 600 ± 10%. The air flow is as high as 100 m 3 / h and the noise generated by the propeller is approx. 8,6 dB, which makes it a very quiet and efficient fan in its class available on the market. The mounting is very simple -, we install the fan with 4 screws in the chosen place.

- Solid construction, 140 x 140 x 25 mm

- State-of-the-art IC

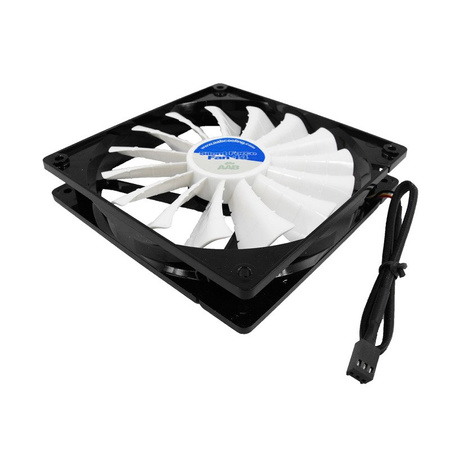

- Cable in elegant black braid

- Modern, quiet FDB bearing

- Excellent work performance 100 m3/h

- Mounting and anti-vibration washers

- Extended lifespan: 100000h




Excellent cooling:

Highly efficient and 140 x 140 x 25 mm dimensions allow the fan to be mounted on the heatsink for efficient cooling of the processor instead of the loud noise of other manufacturers.
Excellent replacement for loud fan on a CPU heat sink. Can be installed on the side panel of a PC.

FDB bearings:

- no friction, prolonged lifespan
- leveling the vibrations that are damped by oil
- minimizing noise, which is generated only by fan blades
- oil leakage protection
- spiral filling with oil for better lubrication, no possibility of oil accumulation in one part of the bearing
- used on hard drives, as much more efficient, quieter, to guarantee more efficient work
- Ordinary plain bearings slip during operation, rubbing against each other, they heat up, which significantly shortens their life span

Mounting the fan in a casing or power supply:

The AAB Cooling Silent Force Fan 14 is mounted on 4 screws, attached just like the standard fans in the power supply, allows quick and easy replacement of the loud fan. Mounting methods in the power supply:
- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed.

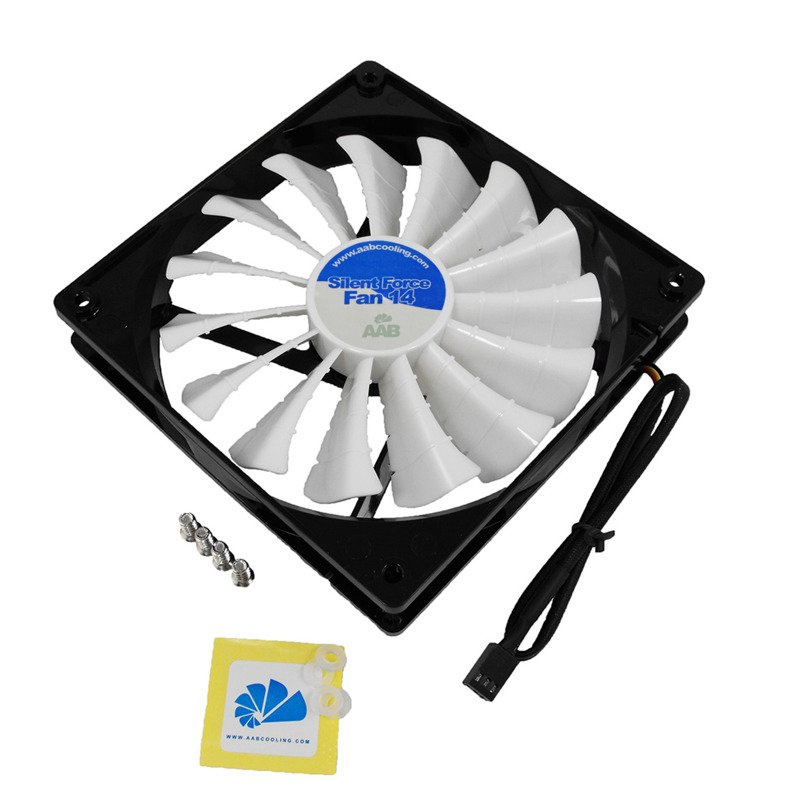

Included:

- 1 x AAB Cooling Silent Force Fan 14
- 4 x mounting screws
- 4 x anti-vibration washers
- Packaging

Tech specs
Total dimensions:
140 x 140 x 25 mm
Weight:
119 g
Material:
Plastic
Power Supply:
4V-12 VDC/ 0,06A-0,12A/ 0,3W-1,44W
Power Connector:
3 Pin
Speed:
600 rpm ±10%
Airflow:
100 m3/h
Noise:
8,6 dB(A)
Bearings:
FDB(Fluid Dynamic Bearing) - Hydraulic
Thermal resistance:
0,29 C/W
Mounting hole spacing:
125 x 125 mm
Cable length::
30cm
Lifespan:
100000 h
