AABCOOLING Black Silent Fan 12

  • AABCOOLING Black Silent Fan 12 is a Black Series fan, primarily characterized by high quality, quiet operation and favorable price. The silicone pads for screws are also included in the set.
  • AABCOOLING Black Silent Fan 12
  • AABCOOLING Black Silent Fan 12
  • AABCOOLING Black Silent Fan 12
  • AABCOOLING Black Silent Fan 12
  • AABCOOLING Black Silent Fan 12
  • AABCOOLING Black Silent Fan 12
  • AABCOOLING Black Silent Fan 12
Product code: 5907734796825
/ piece

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 30 days.
Show details
30 days to withdraw from the contract
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 30 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

AABCOOLING Black Silent Fan 12 è una ventola della serie Black, soprattutto, è caratterizzata dall'alta qualità della lavorazione, dal funzionamento silenzioso e dal prezzo favorevole. Nel kit sono inclusi i cuscinetti in silicone per le viti responsabili della riduzione delle vibrazioni. L’alta qualità del funzionamento delle ventole AAB è dovuta al moderno cuscinetto FDB (Fluid Dynamic Bearing). Un ulteriore vantaggio di questa soluzione, rispetto ai cuscinetti scorrevoli, è la durata estesa che ammonta a 100000 h. Il flusso d'aria è di 115,5 m3 / h, e il rumore generato dall’elica è di 20,9 dB(A), che la rende una ventola silenziosa e molto efficiente nella sua classe tra le disponibili sul mercato. Il montaggio è molto semplice. Un ulteriore vantaggio è la possibilità di montare 2 ventole, una davanti e l'altra, fornendo un ottimo flusso d'aria.

- Solid construction

- Excellent work performance 115,5 m3/h

- Cable in elegant black braid

- Modern, quiet FDB bearing

- Can be mounted in the power supply

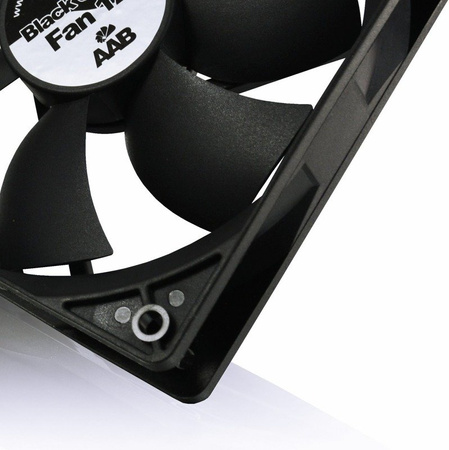

- Mounting and anti-vibration washers

- Extended lifespan: 100000h

Excellent cooling:

Cooling of the case consists of warm air being thrown out. Mostly, the fan from the power supply is not capable of providing good cooling, despite its high speed and quite high noise levels. AABCOOLING Black Silent Fan 12 solves this problem. Highly efficient operation and 120x120x25 mm dimensions allow the fan to be mounted on the heatsink for efficient cooling of the processor instead of the loud noise of other fans from different manufacturers.

FDB bearings:

- no friction, prolonged lifespan
- leveling the vibrations that are damped by oil
- minimizing noise, which is generated only by fan blades
- oil leakage protection
- spiral filling with oil for better lubrication, no possibility of oil accumulation in one part of the bearing
- used on hard drives, as much more efficient, quieter, to guarantee more efficient work
- ordinary plain bearings slip during operation, rubbing against each other, they heat up, which significantly shortens their life span.

Mounting the fan in a casing or power supply:

The AABCOOLING Black Silent Fan 12 is mounted on 4 screws, attached just like the standard fans in the power supply, allows quick and easy replacement of the loud fan. Mounting methods in the power supply:
- connecting the fan on the motherboard and carrying the cable (30 cm) from the power supply by any small gap - possibility of reading the current number of fan speed in the BIOS
- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed.


- 1 x AABCOOLING Black Silent Fan 12
- 4 x Mounting screws
- 4 x Anti-vibration washers
- 1 x Package

Tech specs
Total dimensions:

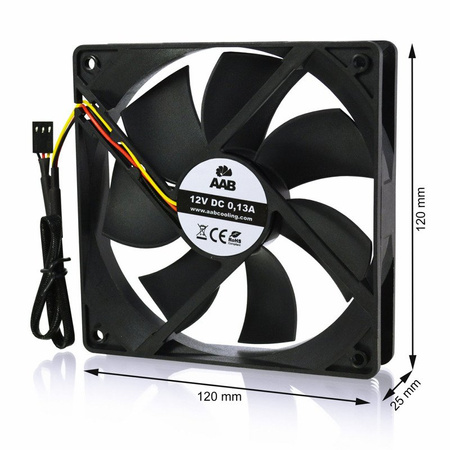

120 x 120 x 25
110 g
Power Supply:
5~12 VDC/ 0,1~0,3A/ 0,5W~3,6W
Power Connector:
3 Pin
1600rpm ±10%
115,5 m3/h
20,9 dB
FDB(Fluid Dynamic Bearing) - Hydraulic
Thermal resistance:
0,29 C/W
Mounting hole spacing:
105 x 105 mm
Cable length::
100000 h
