  • AABCOOLING Fan 5 is an economical fan from AAB. The fan runs at a constant 3000 ± 10% rpm. The noise level generated by the blades and the bearing is 21 dB.product warranty is only 3 months.
£1.64
incl. VAT / piece
Regular price / piece
of
30 days for easy returns
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.
aab_cooling_fan_5_dsc_2748

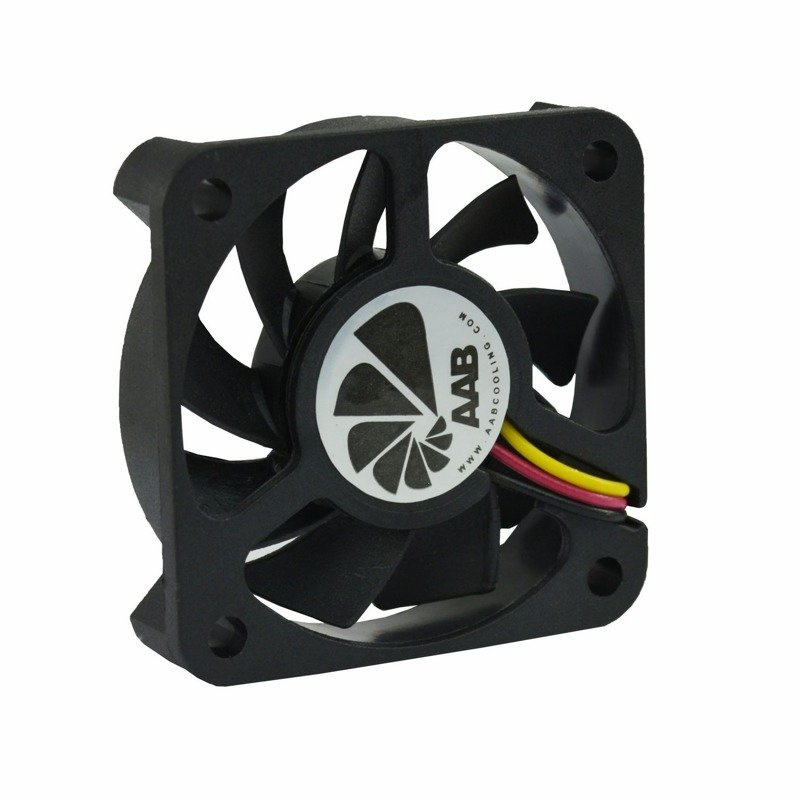

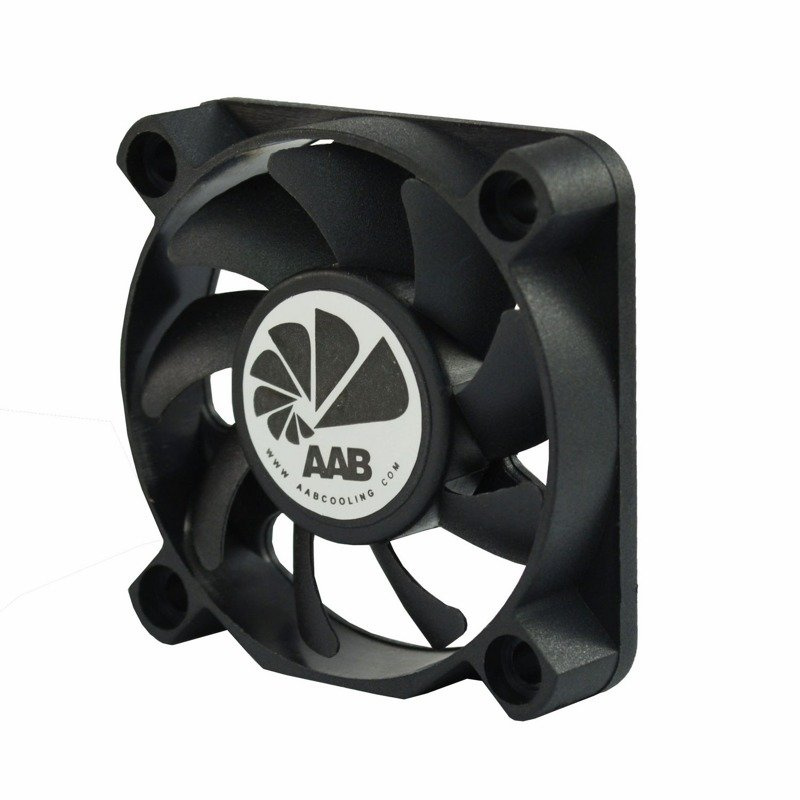

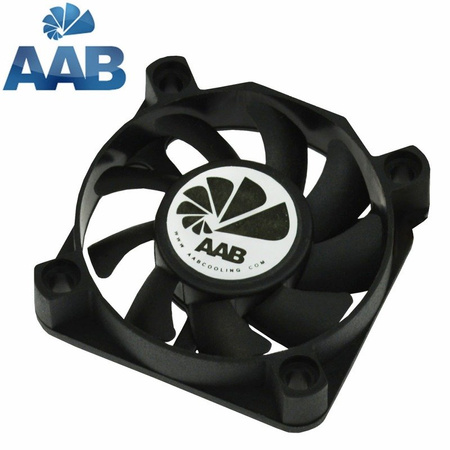

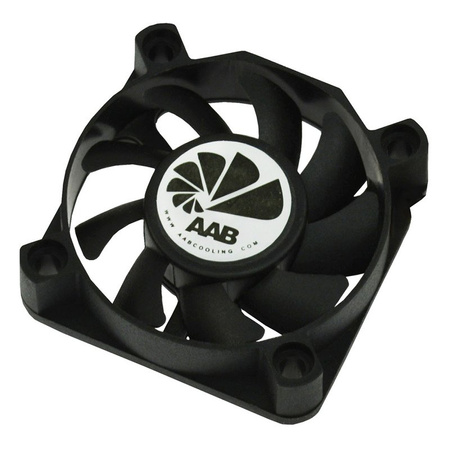

AABCOOLING Fan 5 is an economical fan from AAB. The fan runs at a constant 3000 ± 10% rpm. The noise level generated by the blades and the bearing is 21 dB(A). Due to the installation of the cheapest and short-life plain bearings in this fan, this product warranty is only 3 months.

- Economy series

- Efficient

- 3 Pin Plug

- Sleeve Bearings

- Warranty 3 months




Typical applications:

Mounting the fan in the cover or power supply: The AAB Cooling Fan 4 is mounted on four screws, fixed to the standard fans in the power supply, allowing quick and easy replacement of the loud fan.

Installation methods in the power supply:

- Plug the fan plug into the 3Pin connector
- It is safer to solder the power cord to the power supply (voltage control from the power supply). Cut off the 3 pin plug and connect the fan directly to the power supply (no return possible).

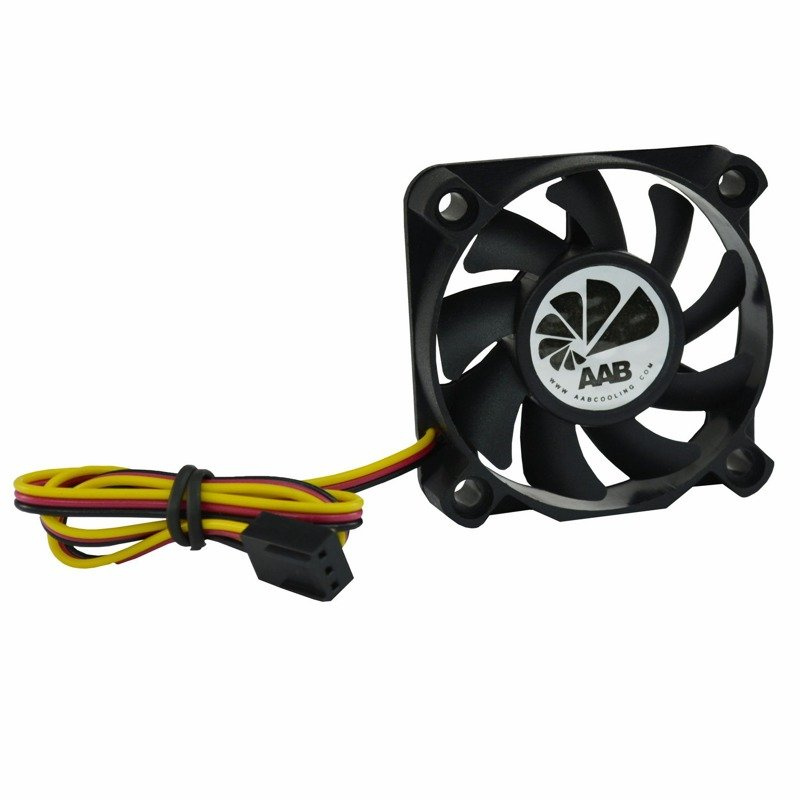

- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed

Included:
- 1 x AABCOOLING Fan 5

Symbol
5901812999979
Producer code
5901812999979
Total dimensions
50 x 50 x 11,7 mm
Weight
21 g
Material
Plastic
Power Supply
6,5~12 VDC/ 0,04A~0,07A
Power Connector
3 Pin
Speed
3000 rpm ±10%
Airflow
6,42 CFM
Noise
21 dB(A)
Bearings
Slides
Thermal resistance
0,29 C/W
Mounting hole spacing
40 x 40 mm
Cable length:
30cm
